產品中心

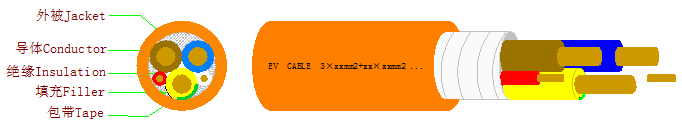

單相交流充電線電纜
市場價： 0.00
價格： 0.00
| 規格Spec | 導體絞合外徑 Conductor Stranded OD Ref. mm | 導體電阻 Max. Conductor resistance，mΩ/m@20℃ | 允載電流 Permissible ampacity@20℃ ambient | 無屏蔽完成外徑 Non-screen Over diameter mm Ref. | 包裝 Packing M/Reel |
| 3×2.5mm2+(1～2)×(0.5～0.75)mm2 | 2.1 | 7.98 | 20A | 11.0~13.0 | 800m/700# |
| 3×4.0mm2+(1～2)×(0.5～0.75)mm2 | 2.8 | 4.95 | 32A | 13.0~14.0 | 500m/700# |
| 3×6.0mm2+(1～2)×(0.5～0.75)mm2 | 3.5 | 3.3 | 42A | 14.0~16.0 | 400m/800# |
| 3×10.0mm2+(1～2)×(0.5～0.75)mm2 | 4.5 | 1.91 | 60A | 18.0~20.0 | 500m/950# |
| 3×16mm2+(1～2)×(0.5～0.75)mm2 | 5.7 | 1.21 | 82A | 20.5~22.5 | 500m/950# |
| 1、以上載流量僅供參考使用，具體的選擇請按實際情況。 Above carrying capacity are for reference only, specific choice according to the actual situation, please 2、產品的具體參數以技術圖紙為準。 the specific parameters of product should be according to technical drawings. | |||||
