| Power (w) | 1000 | 2000 | 3000 | 5000 | 8000 | 10K | 15K | 20K | 30K | |||||
| Input Voltage | 3phase 380VAC | |||||||||||||
| Input Frequency | 45--65Hz | |||||||||||||
| Charging voltage | 27.6v-55.5v | 41.5v-55.5v | 55.5v-110v | 110v-218v | 218v-275v | 218v | 275v-441.6v | |||||||
| Output Voltage | 3 phase 380VAC | |||||||||||||
| Output frequency | 50HZ | |||||||||||||
| Output waveform | Pure sine wave THD the 3 full | |||||||||||||
| DC Voltage | 24-48VDC | 48-96 VDC | 96/192VDC | 192/240VDC | 192VDC | 240/384VDC | ||||||||
| Close-down voltage | 27.6-55V | 41.5v-85.5 | 85.5v-170v | 170v-215v | 170v | 215-336v | ||||||||
| utput Wave form | Pure Sine wave, THD<4%(with full load) | |||||||||||||
| Transfer Time | city power mode to battery mode <8 seconds, battery mode to city power mode <3second | |||||||||||||
| Charge Current | Max 5 | Max 10 | Max 15 | |||||||||||
| General Protection | Output short, Over voltage, Low voltage, Low battery voltage, Surge protection, loss phase and phase sequence protection. | |||||||||||||
| Overload & Protection | 100-120% 30 sec, Over 120%, 100ms. > 200% surge power, | |||||||||||||
| Remote shutdown | by DB9 header connector | |||||||||||||
| Environment temp. 0-40℃ | ||||||||||||||
| Humidity 20-90%(non-condensing, max) | ||||||||||||||
| Machine size | L717*W260*H570 | |||||||||||||
| Dimensions | L845*W430*H700 | |||||||||||||
| Net weight | 10KW95KG20KW120KG | |||||||||||||
| GW | 10KW120KG 20KW155KG | |||||||||||||

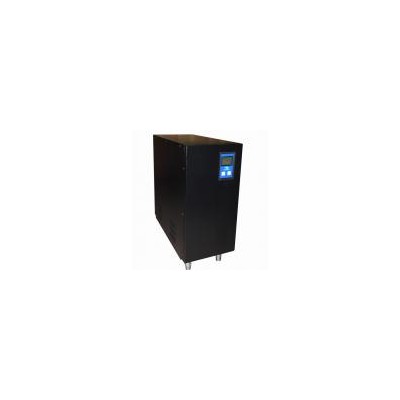

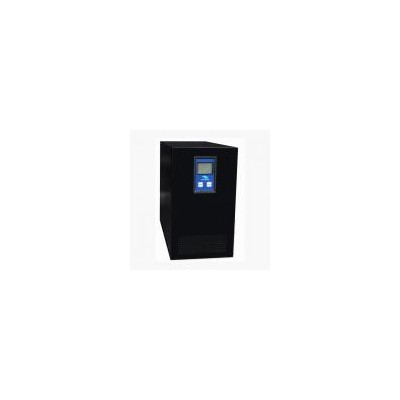

[新品] 美國(guó)5KW三相逆變器(6kw-20kw)
