| 產品認證 | CE ROHS |
|---|---|
| 輸入電壓 | 36 |
| 蓄電池容量 | 150 |
| 品牌 | 雷銘 |
| 型號 | LM-S-600A |
| 加工定制 | 是 |
| 用途/使用范圍 | 戶外野營、家里停電、出海打魚、養蜂、打獵、看山、種果園、菜地、山區、林區、牧區、庭院照明、樓道照明、 |
| 主機輸出容量 | 190 |
光伏發電系統產品介紹：
太陽能發電系統是通過光能轉換成電能的光電轉換設備，在無市電情況下可滿足家庭用電使用。
可用于家庭通用電源，如節能燈、電風扇、收音機、電視機等小功率電器；也可為山村、無電地區設計，是一套獨立太陽能電源設備。無污染，安全可靠，壽命長，運作費用低，無需維護等優點。
1. 可供交、直流兩種類型的負載使用。
2. 此系列太陽能發電系統是通過光能轉換成電能的光電轉換設備，在無市電情況下可滿足家庭用電使用。
3. 可用于家庭通用電源，如節能燈、電腦、電風扇、收音機、電視機等中小功率電器。
4. 無污染，安全可靠，壽命長，運作費用低等優點。
5. 多個輸出接口：1）AC220V 2個 2）DC12V 2個 3）DC5V 2個。
6.LCD屏可顯示充電電流和放電電流以及蓄電池容量，并用撥動開關控制其顯示狀態。
7. 支持iphone,ipad,安桌手機等大電流充電。
8. 具有過充、過放、過載保護、短路保護、防反接保護，高精度的溫度補償功能。
9. 在光照充足的條件下，每天發電量大約0.72度電。
10.TVS防雷保護。

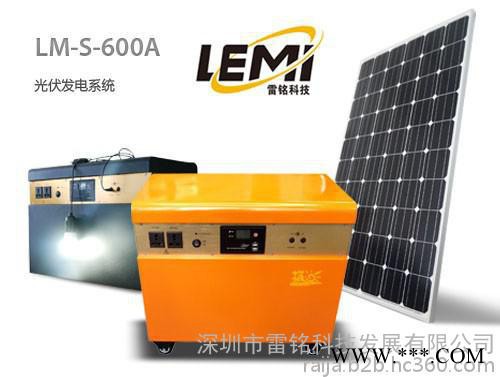

Model No.:LM-S-600A
Specification: 600W
Introduction:
series solar power system refers to the photoelectric conversion equipment which converts light to power and it can satisfy the household electrical if no electricity is available. It can be used for household universal power, such as energy-saving lamp, electric fan, radio, TV and other small power electrical appliances; it is also designed for the mountain village and non-electricity areas. It is a set of independent solar power supply equipment with the advantages such as non-pollution, safe and reliable, long service life, low
operation cost and non-maintenance.
1. Available for DC, AC load.
2. The power supply system refers to the photoelectric conversion equipment which converts light to power and it can satisfy the household electrical if no electricity is available.
3. It can be used for household universal power, such as energy-saving lamp, electric fan,radio,TV and other small power electrical appliances.
4. It is a set of independent solar power supply equipment with the advantages such as non-pollution, safe and reliable,long service life, low operation cost etc..
5. Multiple output adapter.1) 2 AC 220V 2) 2 DC 12V 3) 2 DC 5V
6. Toggle switch controlled LCD screen shows charging and discharging current as well as battery capacity.
7. Compatible with electronic devices,such as iphone, ipad, Android etc.
8. Over-charging, over-discharging protection, overload protection, short circuit protection, power reverse polarity protection as well as high precise temperature compensation function.
9. The system generate 0.72kW.h every day under strong daylight.
10. TVS lightning protection.
技術參數Parameter：
型號Model No. | LM-S-600A |
太陽能板功率Power of solar panel | 240W |
太陽能充電標稱電壓Nominal Voltage of solar charging | 18VDC |
蓄電池Battery | 12V/200AH |
持續輸出功率Continuous Output Power | 600W |
30分鐘持續功率30 minutes Continuous Power | 300Wh |
峰值功率Peak Power | 220VAC/1200W |
輸出電壓Output Voltage | 5VDC/12VDC/220VAC±10% |
輸出頻率Output Frequency | 50HZ±1HZ |
空載電流 No-load Current | < 1.0A |
工作指示W(wǎng)orking Indicator | LCD顯示工作狀態LCD displaying |
輸出波形Output Waveform | 正弦波 Sine Wave |
自動保護Automatic Protection | 過載，過溫，短路，欠壓，過壓Over-load, over-temperature, short circuit, under-voltage,over-voltage |
工作環境溫度working temperature | -25℃ + 45℃ |
存儲溫度Storage Temperature | -40℃ + 70℃ |
應用領域Application：
衛星接收器Satellite Receiver |
| AC25W | 1 | 10H | 250WH |
負載總功率應小于0.6KW The total load power should be less than 0.6KW. |
手機充電Cellphone | 充電電流500MACharging Current 400MA | DC5W | 2 | 3H | 30WH | |
LED燈泡LED Lamp | DC7W | 2 | 5H | 70WH | ||
彩色電視 Color TV |
| AC50W | 1 | 5H | 250WH | |
風扇Fan |
| AC30W | 1 | 3H | 90WH | |
電腦Computer |
| AC65W | 1 | 5H | 325WH | |
總計Total Power | AC170W+DC12W=182W | 1015WH | ||||
