| 產地 | 廣州 |
|---|---|
| 產品認證 | CQC |
| 類型 | 太陽能光伏并網逆變器 |
| 輸出波形 | 正弦波 |
| 輸出功率 | 1200W |
| 輸入電壓范圍 | 90-480V DC |
| 品牌 | 三晶逆變器 |
| 型號 | Sununo-TL1K |

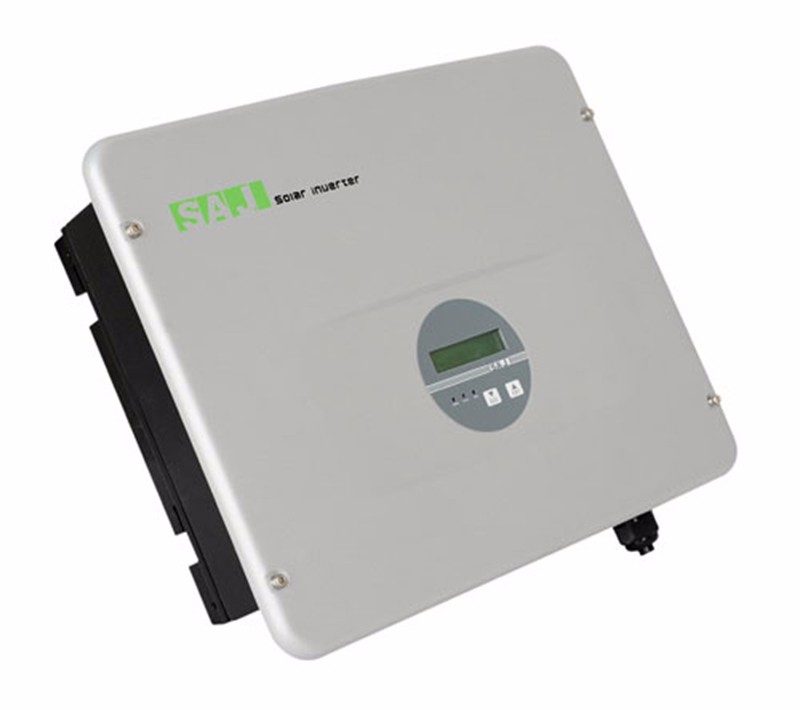

本公司供應太陽能逆變器三晶逆變器Sununo-TL1K1200W 90-480V DC 正弦波 CQC 三晶逆變器 太陽能光伏并網逆變器，質量保證，歡迎咨詢洽談。

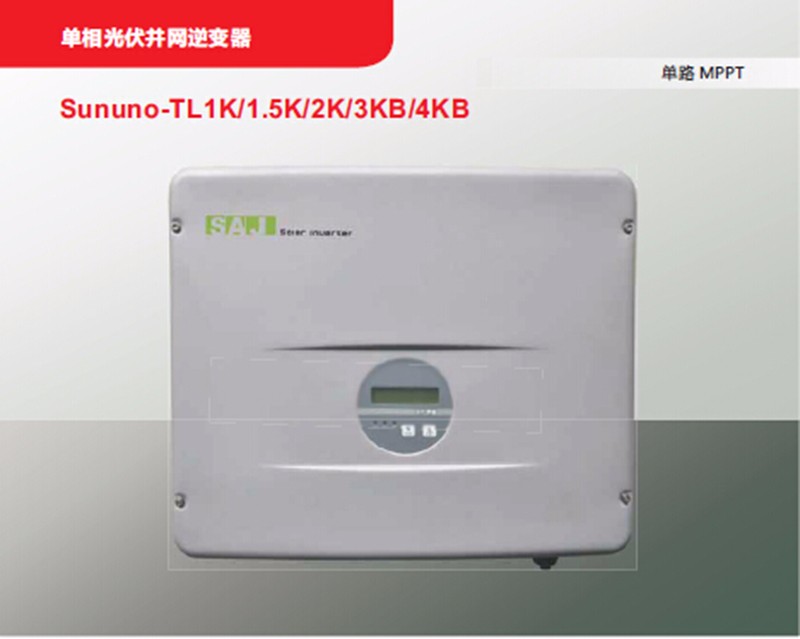

產品簡介
??Sununo-TL1K/1.5K/2K 光伏逆變器采用高速最大功率點跟蹤(MPPT)和無變壓器技術來提高系統發電量和能量儲集。寬輸入電壓范圍使其適用于小型組串低壓設備。
??用戶可通過LCD顯示界面查看實時性信息，更多的通信接口為遠程性能監測提供了方便。本產品是小型光伏電站的理想選擇。
產品特點
??靈活
??■ 集成多國安規與并網標準
??■ RS485/ 以太網/ Wi-Fi
??■ 寬直流輸入電壓范圍
??■ IP65防護等級，適用于室內外安裝
??可靠
??■ 全方位保護功能
??■ 無風扇緊湊型設計
??■ 世界一流的元器件供應
??高效率
??■ 最大效率97.7%
??■ 歐洲效率97.1%
??■ MPPT效率99.9%
技術參數
| Model | Sununo-TL1K | Sununo-TL1.5K | Sununo-TL2K |
| Input (DC) | |||
| Max. DC Power [W] | 1200 | 1800 | 2300 |
| Max. DC Voltage [V] | 480 | ||
| MPPT Voltage Range [V] | 90-425 | 120-425 | |
| Nominal DC Voltage [V] | 360 | ||
| Start Voltage[V] | 100 | 150 | |
| Min. DC Voltage[V] | 80 | 100 | |
| Max. DC Input Current PV1 / PV2 [A] | 10 | 11 | 12 |
| Number of MPPT | 1 | ||
| Number of DC Connection Sets per MPPT | 1 | ||
| DC Switch | Optional | ||
| Output (AC) | |||
| Rated AC Power [W] | 1000 | 1500 | 2000 |
| Max. AC Apparent Power [VA] | 1100 | 1650 | 2000 |
| Rated AC Current[A] | 4.3 | 6.5 | 8.7 |
| Max. AC Current [A] | 5.7 | 8.5 | 11 |
| Nominal AC voltage/ range | 220V, 230V, 240V/180V-280V | ||
| Grid frequency/ range | 50Hz, 60Hz/ ±5Hz | ||
| Power factor,adjustable | >0.99 (full load) | ||
| Total Harmonic Distortion (THDi) | < 2% | ||
| Feed-in Phase / Connection Phase | 1/1 | ||
| Efficiency | |||
| Max. Efficiency | 97.20% | 97.30% | 97.40% |
| Euro Efficiency (at 360Vdc) | 96.40% | 96.50% | 96.70% |
| MPPT Accuracy | >99.5% | ||
| Protection | |||
| Internal Over-voltage Protection | Integrated | ||
| DC Insulation Monitoring | Integrated | ||
| DCI Monitoring | Integrated | ||
| GFCI Monitoring | Integrated | ||
| Grid Monitoring | Integrated | ||
| AC Short Circuit Current Protection | Integrated | ||
| Thermal Protection | Integrated | ||
| Anti-island protection monitoring | AFD | ||
| Interface | |||
| DC Connection | MC4/H4 | ||
| LCD Display | LCD (16x2 Characters, Backlight) & LED (3 Lights) | ||
| Display Language | English | ||
| Datalogger & Communication | RS485 (Standard), Ethernet (Webserver ded), WiFi(Optional) | ||
| General Data??? | |||
| Topology | Transformerless | ||
| Consumption at Night [W] | <0.2 | ||
| Consumption at Standby [W] | 6 | ||
| Operating Temperature Range | -20°C to +60°C(45°C to 60°C with derating) | ||
| Cooling Method | Natural Convection | ||
| Ambient Humidity | 0% to 98% Non-condensing | ||
| Altitude | Up to 2000m (without power derating) | ||
| Noise [dBA] | <30 | ||
| Ingress Protection | IP65 (Indoor & Outdoor Installation) | ||
| Mounting | Rear Panel | ||
| Dimensions (W*H*D) [mm] | 415*313*140 | ||
| Weight [kg] | 11 | ||
| Standard Warranty [Year] | 5 (standard)/10/15/20/25 (Optional) | ||
| Certificates | IEC62109-1/2, IEC61000-6-2/3, C10/11, VDE0126-1-1/A1, G83/2, NRS 097-2-1, EN50438, TF3.2.1, UTE C15-712-1, AS4777.2, AS4777.3, AS3100, IEC62116, IEC61727, PEA/MEA | ||
